Fuel Injection System - BOSCH LH: Wiring Diagram

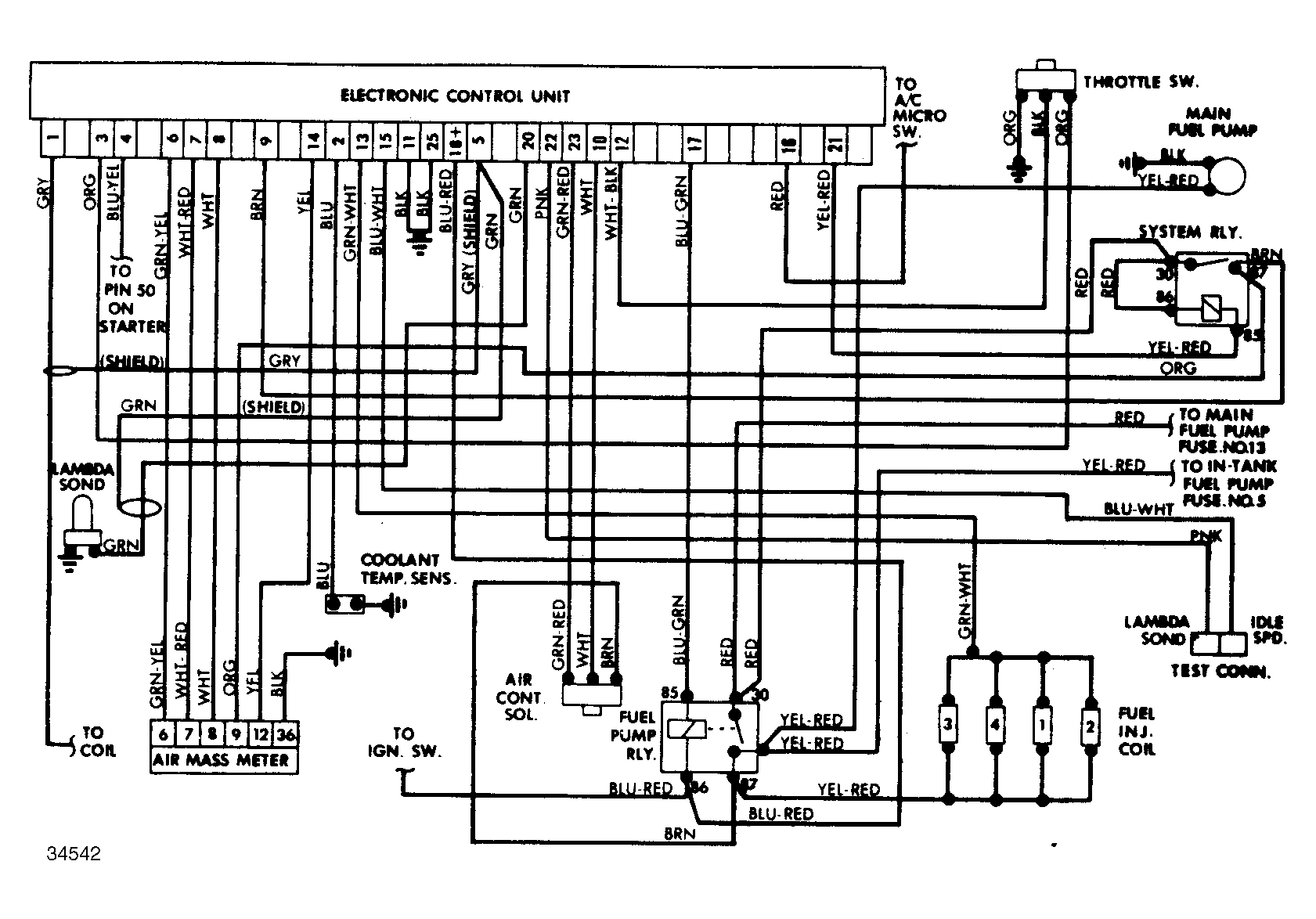

Fig 1: Bosch LH Jetronic II Fuel Injection System Wiring Diagram

G34542
