Valve Arrangement

E-I-E-I-E-I-I-E-I-E-I-E (Front to rear)

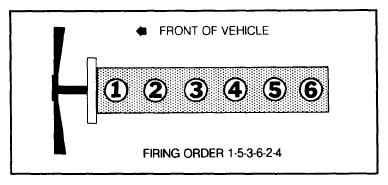

Fig 1: Firing Order Illustration

G09314339

Courtesy of VOLVO CARS CORPORATION
