Drive Axles: Overhaul: Disassembly
- Place axle assembly in suitable holding fixture with pinion flange pointing downward. Remove brake lines and axle shafts. Remove inspection cover. If final drive is being reconditioned because of noise, run a tooth contact pattern check before disassembly as this may assist in locating fault.

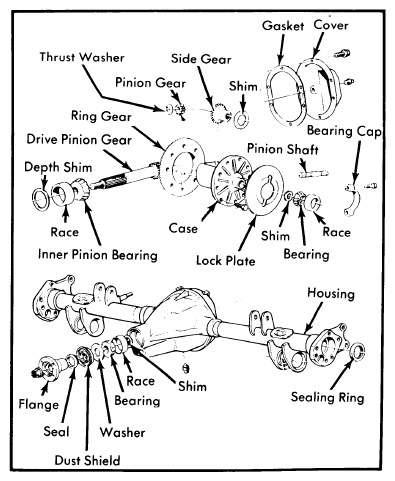

Courtesy of VOLVO CARS CORPORATION
- Check alignment markings on bearing caps and carrier. If there are no markings, or if they are difficult to see, mark 1 side with a punch. Remove cap. Using a case spreader, spread case and lift out carrier with ring gear. Turn final drive over and drain oil. Remove pinion flange and press out pinion. Remove pinion front bearing, washer and oil seal with driver.
- If necessary, drive out rear pinion bearing from case using a drift. Clean axle case gasket surface and remove any burrs present. If necessary, pull off rear bearing from pinion. Pull off differential carrier bearing and retain shims. Remove lock plate for ring gear bolts, remove bolts and ring gear. Drive out lock pin securing differential gear shafts and remove shaft, gears and thrust washers.
