Wiring Diagrams
>>
Instrument Panel
Instrument Panel

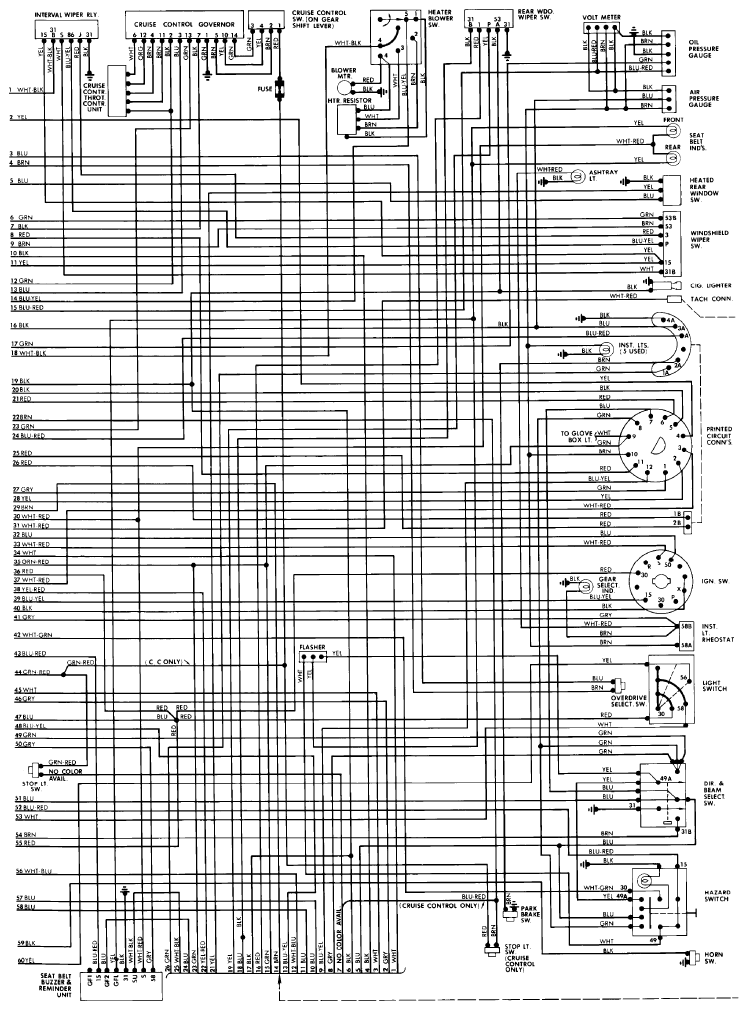

Fig 1: Wiring Diagram - GLE Bertone Diesel and DL GL GLT Turbo (3 of 4)
Courtesy of VOLVO CARS CORPORATION
Courtesy of VOLVO CARS CORPORATION
