Volvo Vacuum Diagrams

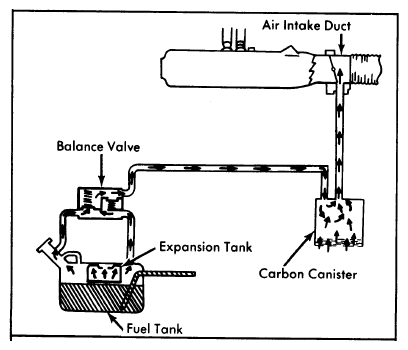

Fig 1: 1974 Fuel Evaporation System (Fuel Injected)
G09350923Courtesy of VOLVO CARS CORPORATION

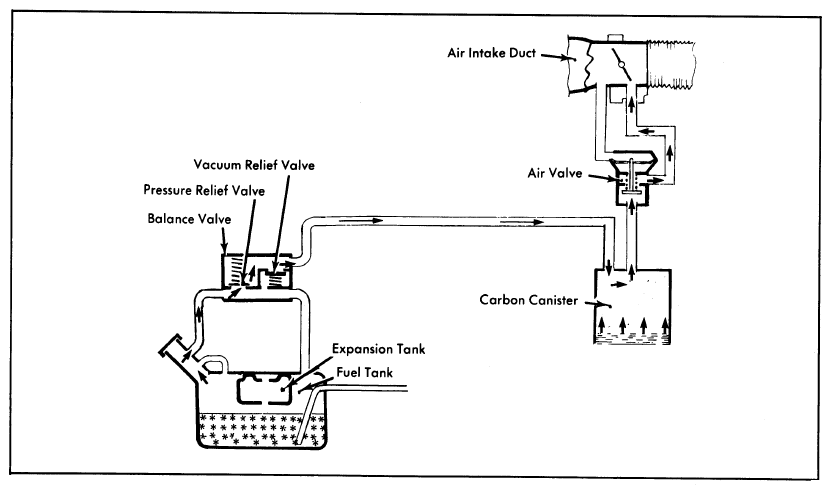

Fig 2: 1975-78 Foe/Evaporation System
G09350924Courtesy of VOLVO CARS CORPORATION

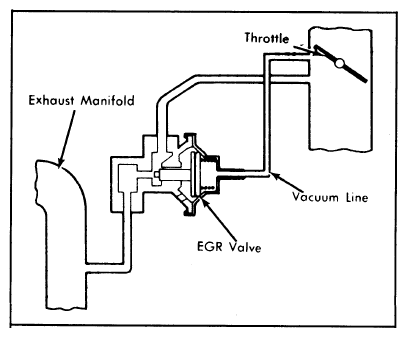

Fig 3: 1974-75 164 Series Exhaust Gas Recirculation System
G09350925Courtesy of VOLVO CARS CORPORATION

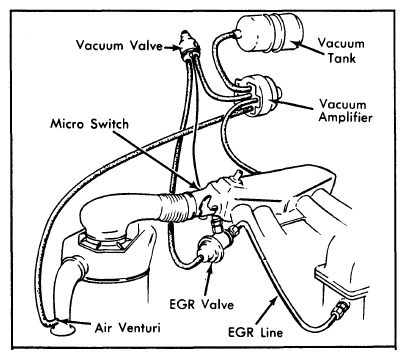

Fig 4: 1974-75 240 Series Exhaust Gas Recirculation System
G09350926Courtesy of VOLVO CARS CORPORATION

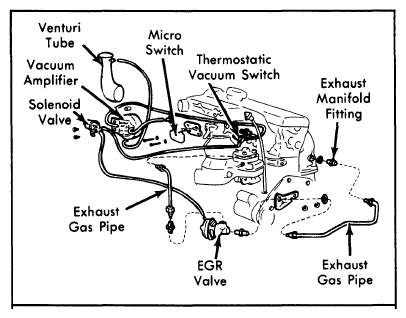

Fig 5: 1976-78 240 Series Exhaust Gas Recirculation System
G09350927Courtesy of VOLVO CARS CORPORATION

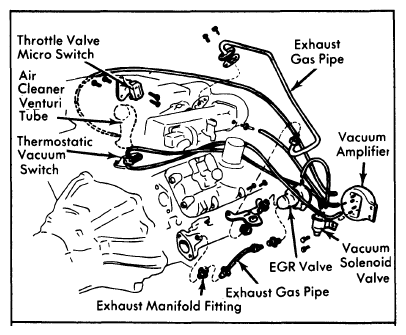

Fig 6: 1976-78 260 Series Exhaust Gas Recirculation System
G09350928Courtesy of VOLVO CARS CORPORATION

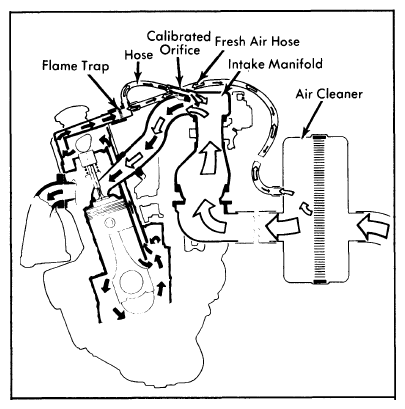

Fig 7: 1976-78 240 Series Positive Crankcase Ventilation System
G09350929Courtesy of VOLVO CARS CORPORATION

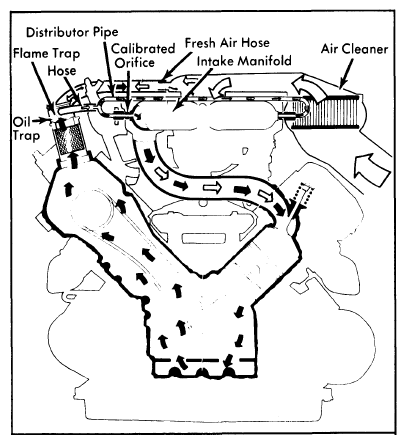

Fig 8: 1976-78 260 Series Positive Crankcase Ventilation System
G09350930Courtesy of VOLVO CARS CORPORATION
