Wiring Diagrams

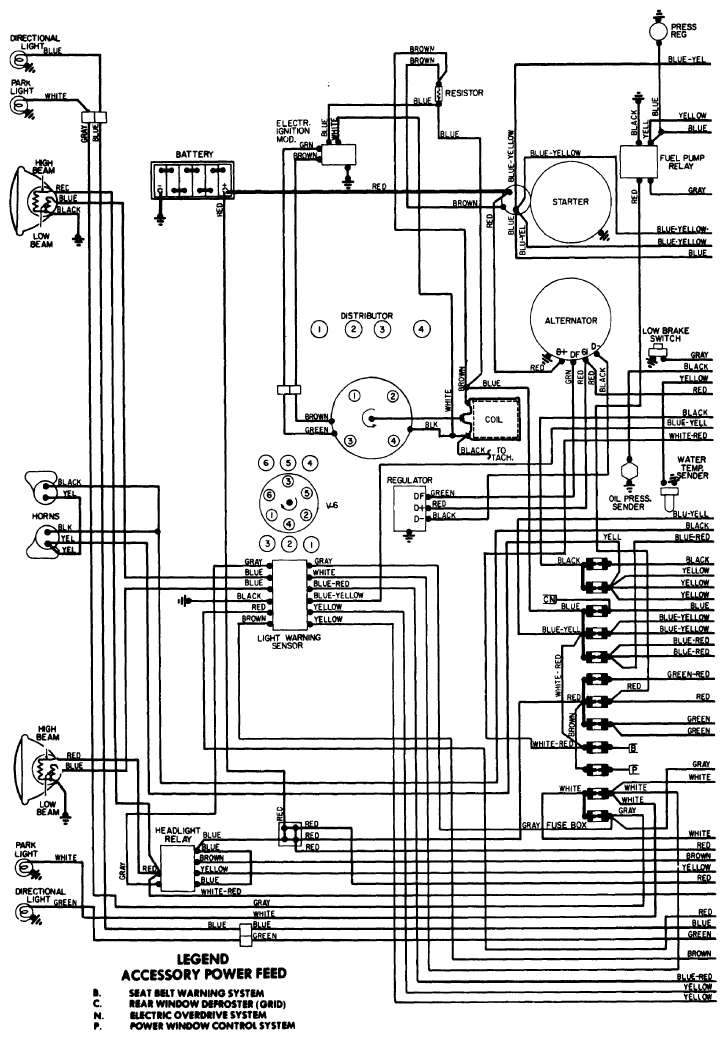

Fig 1: Wiring Diagrams - Volvo (1 of 2)

G09303027

Courtesy of VOLVO CARS CORPORATION

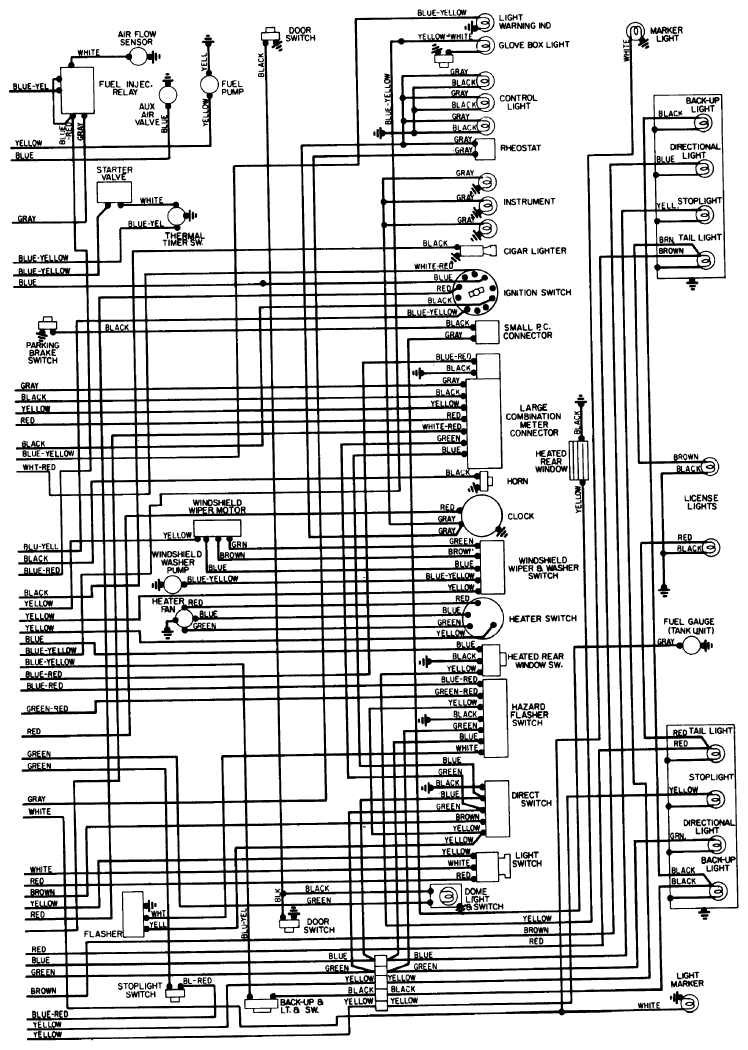

Fig 2: Wiring Diagrams - Volvo (2 of 2)

G09303028

Courtesy of VOLVO CARS CORPORATION
