Rear Suspension: Description

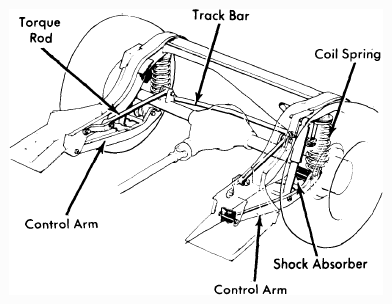

All models use a live axle with coil spring rear suspension. Control arms, running forward from axle, are used. A track bar is connected at one end to axle and on opposite side of vehicle to frame. Coil springs mount between axle assembly and frame. Hydraulic shock absorbers are used and are attached at top end to frame and at lower end to control arm.
