Removal & Installation: Installation

To install, reverse removal procedure, noting the following: When installing new shear bolts for column lock, do not break off heads until lock mechanism is completely assembled and installed.

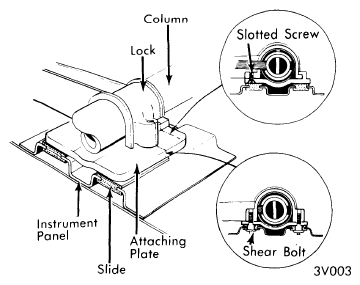

Fig 1: Removing Column Lock
G09355826Courtesy of VOLVO CARS CORPORATION
