Torque Specifications
TIGHTENING SPECIFICATIONS
| Application | Ft. Lbs. (mkg) | ||
|---|---|---|---|

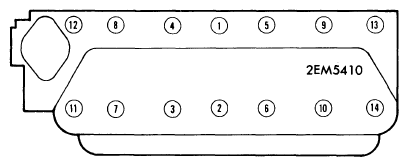

| Cylinder Head Bolts | (1)65 (9.0) | ||
| Main Bearing Cap Bolts | 87-94 (12.0-13.0) | ||
| Connecting Rod Cap Bolts | 38-42 (5.3-5.8) | ||
| Flywheel Bolts | 51-58 (7.0-8.0) | ||
| Camshaft Nut | 94-108 (13.0-15.0) | ||
| Crankshaft Pulley Bolt | 51-58 (7.0-8.0) | ||
| Pan Bolts | 6-8 (.83-1.1) | ||
| Intake & Exhaust Manifold Bolts | 13-16 (1.8-2.2) | ||
|
|||
