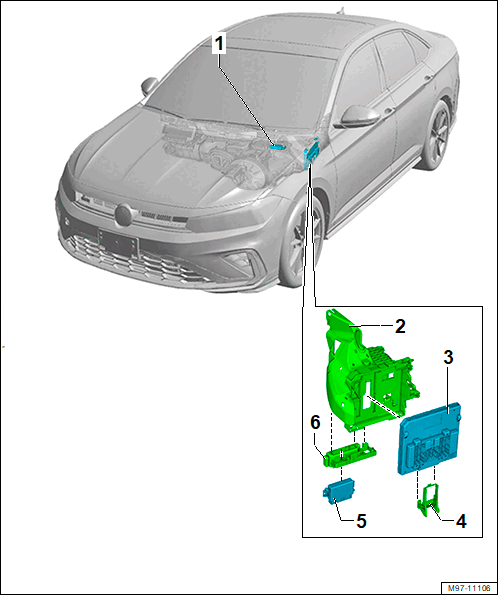

Component Location Overview - Control Modules

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Data Bus on Board Diagnostic Interface -J533-
   • On the crash bolster
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
2. Bracket
   • For the Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Bracket for Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
3. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
4. Guide
   • For the center connector
5. Parking Aid Control Module -J446-
   • With parking aid: Parking Aid Control Module -J446-
   • Overview. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
6. Bracket
   • For the Parking Aid Control Module -J446-
   • Overview. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
