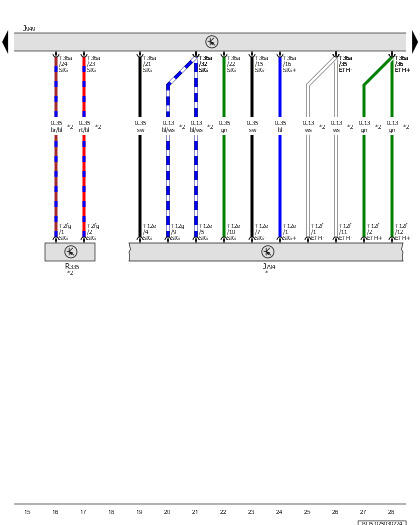

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2fg

2-Pin Connector, Black

T12e

12-Pin Connector, Blue

T12f

12-Pin Connector, Green

T12g

12-Pin Connector, Gray

T36a

36-Pin Connector, Black

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Depending on Equipment
