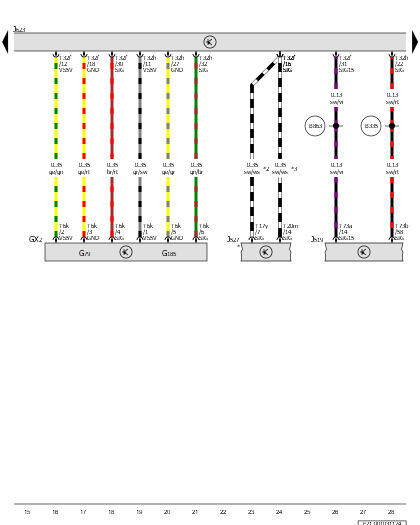

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

T6k

6-Pin Connector, Black

T17y

17-Pin Connector, Yellow

T20m

20-Pin Connector, Brown

T32f

32-Pin Connector, Gray

T32h

32-Pin Connector, Blue

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

B335

Connection 54 (in Main Wiring Harness) 1

B863

Connection 30 (in Steering Wheel Wiring Harness)

Refer to Applicable Steering Column Electronics Wiring Diagram

For Vehicles Without UNECE Cyber Security

For Vehicles with UNECE Cyber Security
