Vehicle Data Label

The vehicle data label -arrow- is located on the vehicle on the lock carrier cover. The vehicle data label is also in the customer maintenance schedule.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

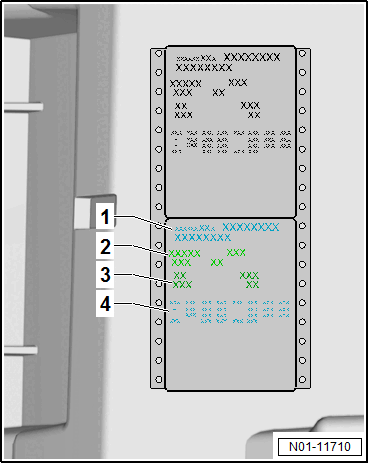

The label contains the following vehicle data:

Fig 1: Vehicle Data Label

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -

Vehicle Identification Number (VIN)

2 -

Vehicle Model, Engine Output, Transmission

3 -

Engine and Transmission Codes, Paint Number, Interior Equipment

4 -

Optional Equipment, PR Numbers

The sticker inside the customer maintenance schedule contains the same information. The legend is located under the sticker.
