Overview - Shift Mechanism

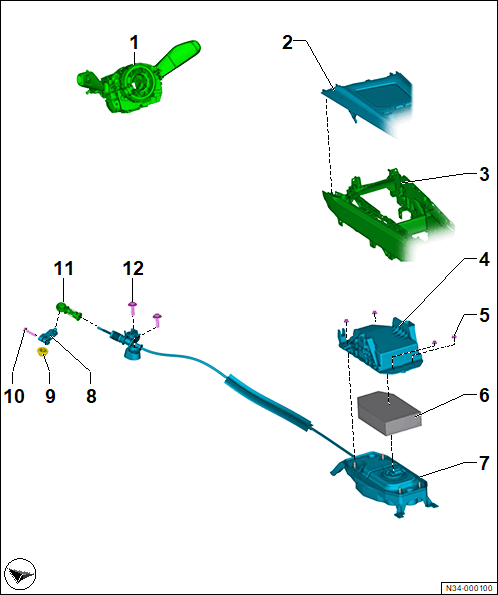

Fig 1: Exploded View Of Shift Mechanism (Shift By Wire, Selector Lever On Steering Column)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Steering Column Switch Module
- with Selector Lever -E313-
- with Parking Lock Button -E816-
- with Selector Lever Transmission Range Display -Y5-
- Refer to the appropriate service information .
Center Console Insert
- Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Center Console
- Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Center Console Bracket
- Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nut
- Quantity: 4
- 8 Nm
Insulation Mat
Selector Mechanism -EX2-
- with Selector Lever Sensor System Control Module -J587-
- with Parking Lock Actuator -V682-
- Only replace with the selector lever cable
- Refer to Shift Mechanism, Removing and Installing .
- Refer to SHIFT MECHANISM, CHECKING .
Shift Lever
Gearshift Shaft Seal
- Replace after removing
- Refer to Selector Shaft Seal, Replacing .
Bolt
- Replace after removing
- 10 Nm +90°
Cable Retainer
- Replacing when removing and during adjusting procedures
- Refer to Shift Mechanism, Removing and Installing .
- Refer to Selector Lever Cable, Checking and Adjusting (Bolted Cable Retainer) , or Selector Lever Cable, Checking and Adjusting (Clamped Cable Retainer) .
Bolt
- Quantity: 2
- 20 Nm
