Knock Sensor 1 G61, Removing And Installing: Removing

-- Remove the Engine Temperature Control Actuator -N493-. Refer to ENGINE TEMPERATURE CONTROL ACTUATOR N493, REMOVING AND INSTALLING .

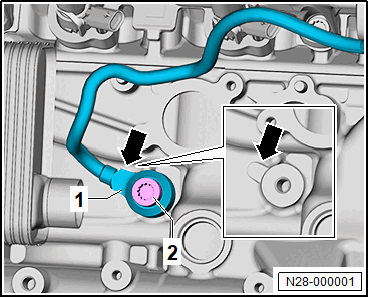

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wire -1-.

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the knock sensor -1-.
