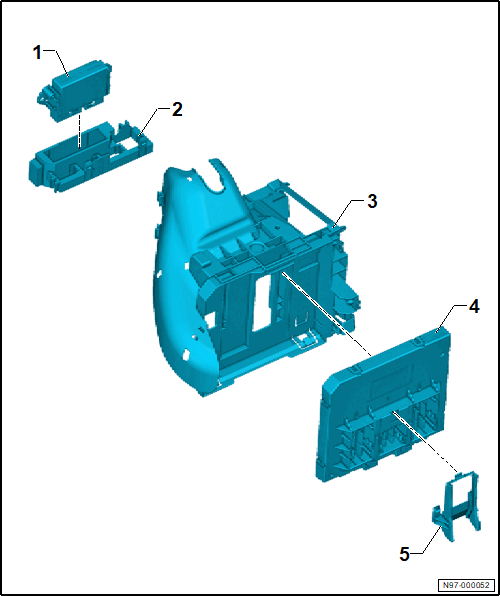

Overview - Vehicle Electrical System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
   • Refer to PARKING AID CONTROL MODULE J446, REMOVING AND INSTALLING .
2. Bracket for Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
3. Bracket for Vehicle Electrical System Control Module -J519-
   • Refer to BRACKET FOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519, REMOVING AND INSTALLING  .
4. Vehicle Electrical System Control Module -J519-
   • Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519, REMOVING AND INSTALLING  .
5. Guide
