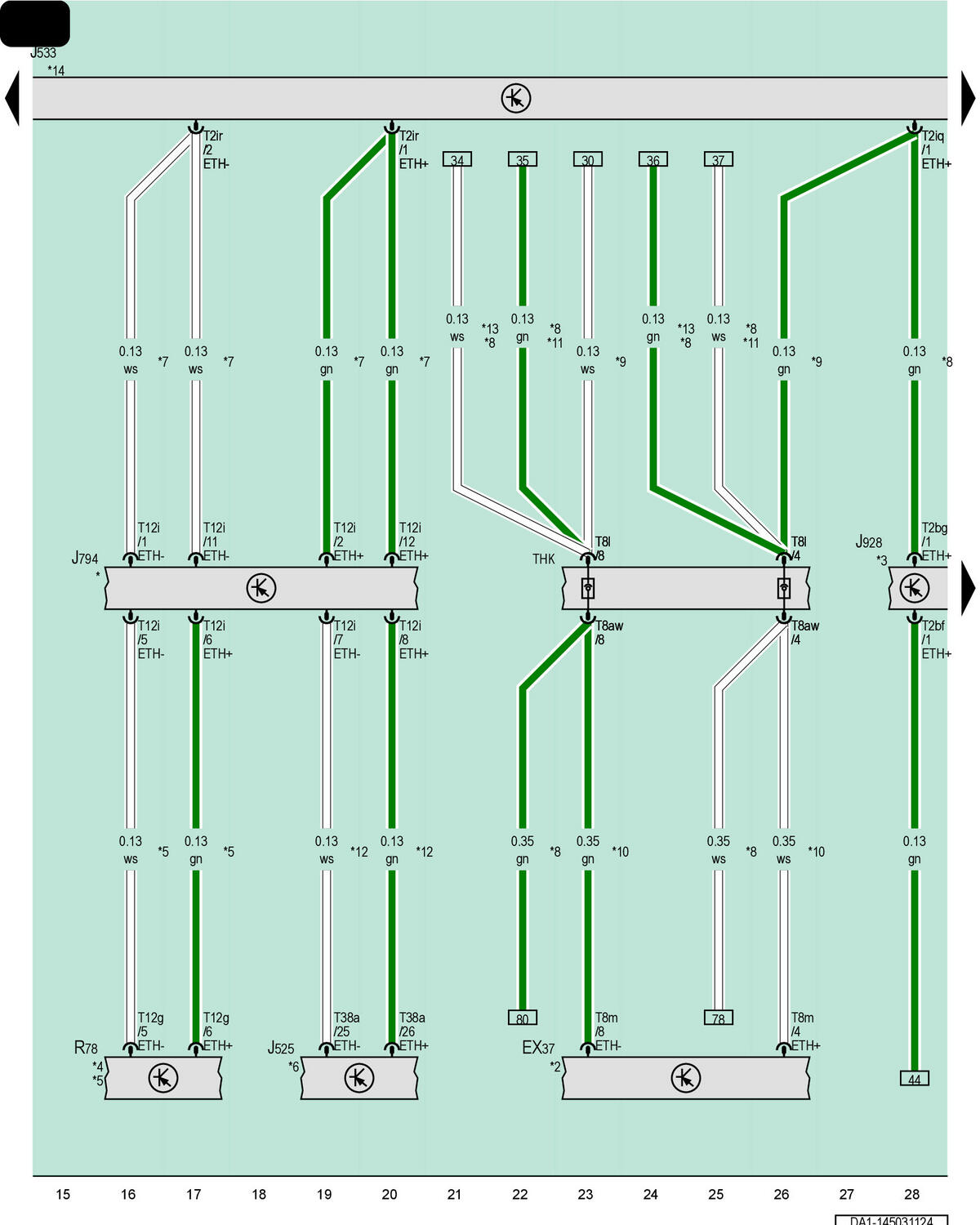

Rear Lid Handle, Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Peripheral Camera Control Module, TV Tuner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX37

Rear Lid Handle

J525

Digital Sound System Control Module

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

J928

Peripheral Camera Control Module

R78

TV Tuner

T2bf

2-Pin Connector, White

T2bg

2-Pin Connector, White

T2iq

2-Pin Connector, White

T2ir

2-Pin Connector, White

T8aw

8-Pin Connector, Black

T8l

8-Pin Connector, Black

T8m

8-Pin Connector, Black

T12g

12-Pin Connector, Black

T12i

12-Pin Connector, Green

T38a

38-Pin Connector, Black

THK

Rear Lid Coupling Point

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Refer to Applicable Power Rear Lid Wiring Diagram

*3

Refer to Applicable Peripheral Camera Wiring Diagram

*4

Refer to the Applicable TV Tuner Wiring Diagram

*5

For Vehicles with Japan Equipment

*6

Refer to Applicable Sound System Wiring Diagram

*7

Depending on Equipment

*8

For Vehicles with Peripheral Camera

*9

For Vehicles with Rearview Camera System

*10

Different Wire Color Possible

*11

Through November 2024

*12

The Color of the Wires Depends on Vehicle Equipment

*13

From November 2024

*14

Refer to Applicable Wiring Diagram for Data Bus Networking
