Final Procedures

Was transmission fluid filled

-- Connect the Oil Filler :VAS 6262A  and the Oil Filler - Adapter 6 :VAS 6262/6  .

Continuation

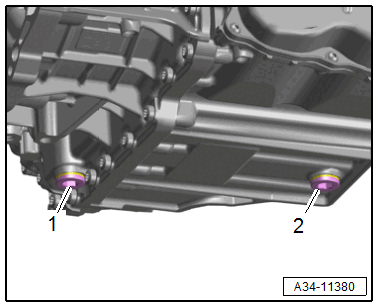

-- Install and tighten the plug -1-.

GWWA34-11380Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch the ignition off.
