Bevel Box, Installing: Installing
-- Lightly grease the flange shaft splines using lubricating grease for clutch plate splines.
Grease for clutch plate shaft splines. Refer to Electronic Parts Information (ETKA).
There is a risk of damaging the bevel box by tilting.
- Attach the bevel box carefully by hand.
- Do not pull the bevel box against the transmission with the bolts.
-- Position the bevel box and attach, for this, turn the flange shaft.
-- Tighten the bolts of the bevel box.

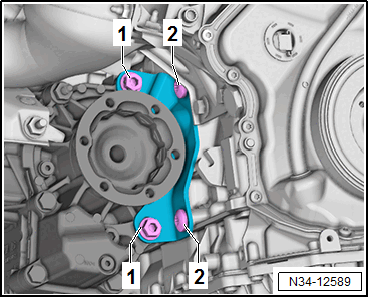

-- Install the bolts -1- and -2-.
-- Install the bolts -1-.
-- Position a commercially available tire iron -A- in between the bolts -1-, to counterhold the flange shaft.
-- Tighten the bolt -2-.
-- Install the driveshaft. Refer to the appropriate service information .
-- Install the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Install the front exhaust pipe with the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING, FWD , or CATALYTIC CONVERTER, REMOVING AND INSTALLING, AWD .
-- Install the subframe with the steering gear. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
-- Refer to Gear Oil Level, Checking .
