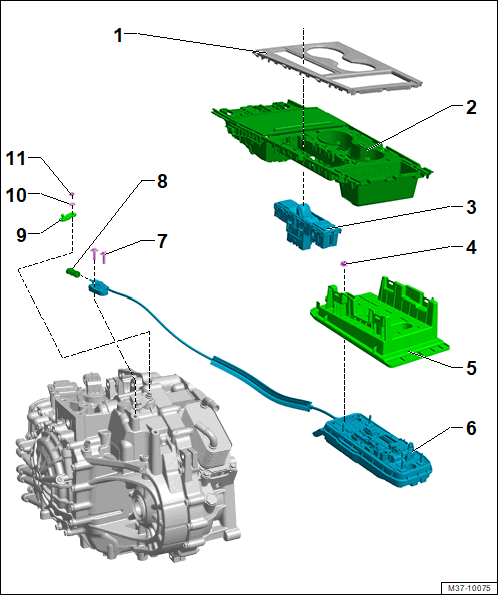

Overview - Shift Mechanism
- Trim
- For center console insert
- Removing and Installing. Refer to OVERVIEW - CENTER CONSOLE .
- Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Selector Mechanism -EX2-
- With integrated components
- Selector Lever -E313-
- Selector Lever Sensor System Control Module -J587-
- Parking Lock Button -E816-
- Selector Lever Transmission Range Display -Y5-
- Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- With integrated components
- Nut
- Quantity: 4
- M6 - 8 Nm
- Front Center Console Bracket
- Removing and installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Shift Mechanism
- With integrated components
- Parking Lock Actuator -V682-
- Parking Lock Solenoid -N486-
- Selector Lever Cable
- The components cannot be replaced separately
- Checking. Refer to SHIFT MECHANISM, CHECKING .
- Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
- With integrated components
- Bolt
- Quantity: 2
- 20 Nm
- Cable Retainer
- Replacing when removing and during adjusting procedures
- Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
- Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
- Shift Lever
- Spring Washer
- Nut
- 18-25 Nm
