Overview - ATF Circuit

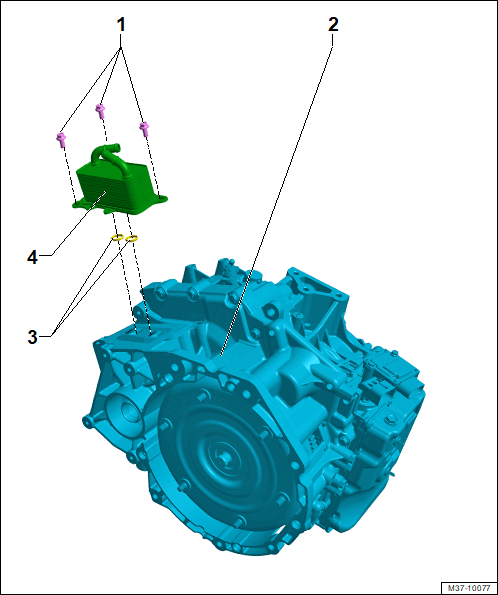

Fig 1: Exploded View Of ATF Circuit
GWWM37-10077Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolts
    • 25 Nm
  2. Transmission
  3. O-Rings
    • Quantity: 2
    • Replace after removing
  4. ATF Cooler
