Overview - Instrument Cluster

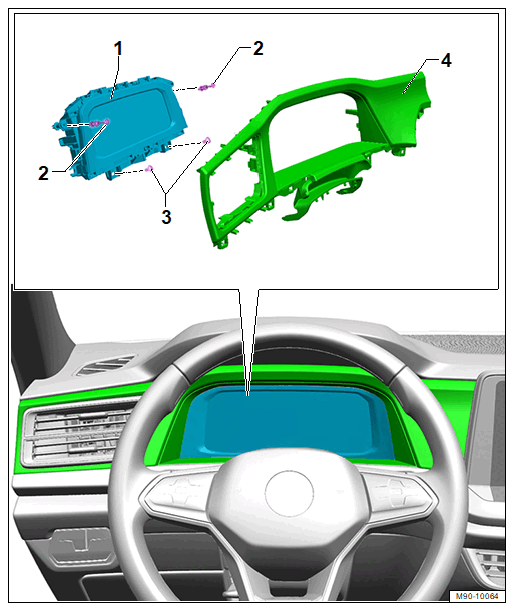

Fig 1: Exploded View Of Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- If an LED for the indicator lamps or instrument cluster illumination is faulty, the instrument cluster must be replaced
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Expanding Rivet
- Quantity: 2
Bolt
- Quantity: 2
- 1.5 Nm
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
