Digital Sound System Control Module -J525- Bracket, REMOVING AND INSTALLING: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Digital Sound System Control Module -J525- Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .

-- If necessary, fold up the carpet and floor insulation at the center tunnel and floor panel.

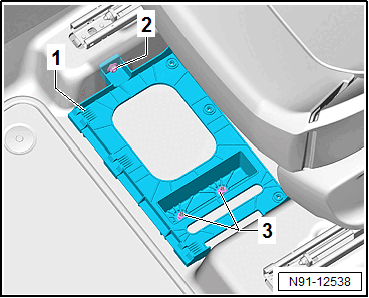

-- Remove the bolt -2- on the center tunnel.

-- Remove the nuts -3- on the floor.

-- Remove the bracket for the Digital Sound System Control Module -J525- -1-.
