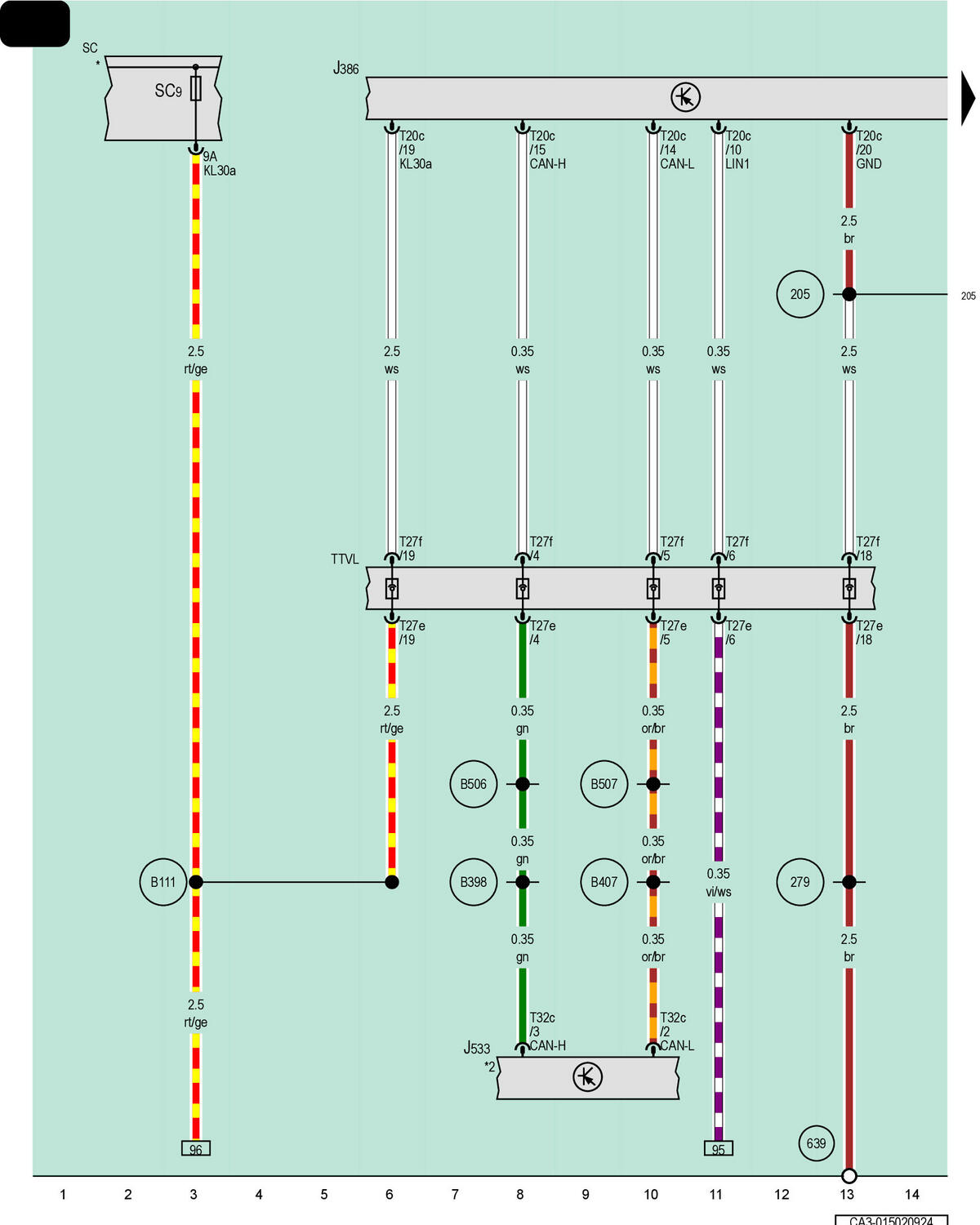

Driver Door Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C
J386
Driver Door Control Module
J533
Data Bus on Board Diagnostic Interface
SC
Fuse Panel C
SC9
Fuse 9 (On Fuse Panel C)
T20c
20-Pin Connector, White
T27e
27-Pin Connector, Black
T27f
27-Pin Connector, Black
T32c
32-Pin Connector, Black
TTVL
Left Front Door Coupling Point
205
Ground Connection (in Driver Door Wiring Harness)
279
Ground Connection 5 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
B111
Positive Connection 1 (30a) (in Interior Wiring Harness)
B398
Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507
Comfort CAN Bus Low Connection (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
