Engine Mount, Removing And Installing: Notes

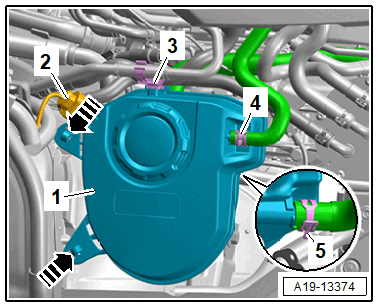

-- Disconnect the connector -2- for the Engine Coolant Level Sensor -G32-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -3- at the coolant expansion tank.

-- Release the catches -arrows- and remove the coolant expansion tank -1- and move to the side.

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.

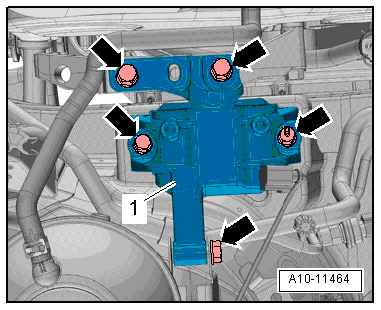

-- Remove the bolts -arrows- and engine mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
