Assembly Mount, Adjusting: Procedure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

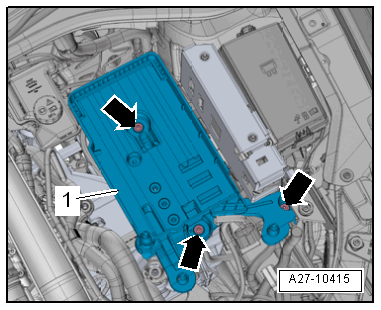

-- Remove the battery tray -1-. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Remove and replace the bolts -arrows- for the engine mount one after the other (if this was not already done when the engine was installed).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts loosely.

-- Slide the engine/transmission assembly with an extractor lever until the following dimensions are set:

• The clearance between the engine support -2- and the engine mount -1- must be -a- = 10 mm.
• The casting edge on the engine support must be parallel to the engine mount support arm.
• Dimension -b- = dimension -b-.

-- Tighten the bolts on the engine mount.

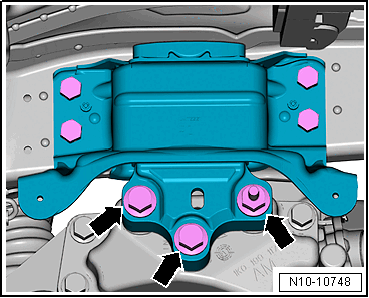

-- Remove the bolts -arrows- for the transmission mount one after the other and replace them (if this was not already done when the engine was installed).

-- Install the bolts loosely.

-- Pay attention that on the transmission side the support arm and the transmission mount remain parallel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dimension -x- = dimension -x-.

-- Tighten the transmission mount bolts.
