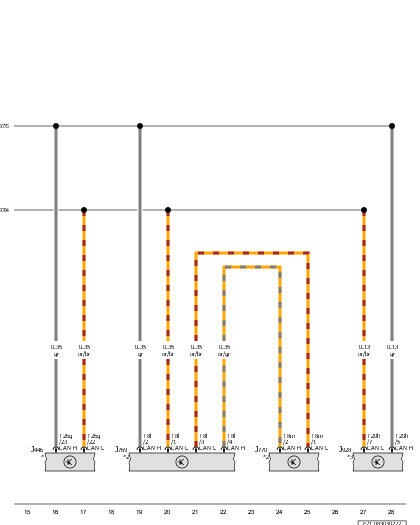

Parking Aid Control Module, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Peripheral Camera Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J446

Parking Aid Control Module

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

J928

Peripheral Camera Control Module

T8l

8-Pin Connector, Black

T8m

8-Pin Connector, Black

T20h

20-Pin Connector, Black

T26g

26-Pin Connector, Black

B775

Suspension Sensor CAN Bus High Connection 4 (in Main Wiring Harness)

B784

Suspension Sensor CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Wiring Diagram for Parking Aid

*2

Refer to the Applicable Assistance Systems Wiring Diagram

*3

Refer to Applicable Peripheral Camera Wiring Diagram
