Overview - Assembly Mounts

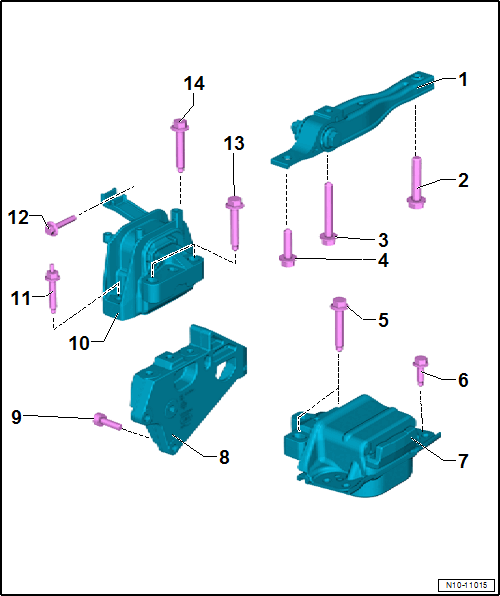

Fig 1: Exploded View Of Assembly Mount
GWWN10-11015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Pendulum Support
  2. Bolt
  3. Bolt
  4. Bolt
    • Replace after removing
    • 60 Nm +90°
  5. Bolt
    • Replace after removing
    • 50 Nm +90°
  6. Bolt
  7. Transmission Mount
  8. Engine Support
  9. Bolt
  10. Engine Mount
  11. Bolt
  12. Bolt
  13. Bolt
  14. Bolt

Transmission with threaded insert (for example Heli Coil) for attaching the pendulum support

Fig 2: Identifying First Thread
GWWN34-10980Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

There are threaded inserts (for example "Heli Coil") in the pendulum support fastening holes.

Identifying feature: there is a collar on the first thread -arrow-.

Make sure to use the appropriate bolts and observe the tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
