Engine, Supporting In Installation Position

Special tools and workshop equipment required

• Engine Support Bridge:10 - 222 A
  Fig 1: Engine Support Bridge 10-222A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Bridge - Adapter:10 - 222 A /35
• Engine Support - Bracket w/Spindle and hook:10-222 A/10
  Fig 2: Engine Support - Bracket w/Spindle and hook

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine/Gearbox Support Shackle:10-222 A/12
  Fig 3: Engine/Gearbox Support Shackle (10-222A/12)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Support the engine

Fig 4: Identifying Engine Cover Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

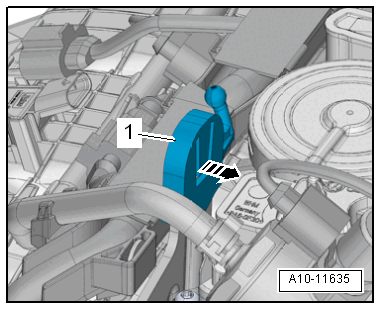

-- Unlock the retaining tab -arrow- and remove the left engine cover mount -1-.

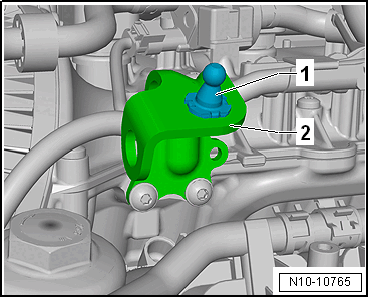

-- Unclip the right mount -1- for the engine cover from the bracket -2-.

Fig 5: Identifying Engine Cover Mount And Locating Bore

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the Engine/Gearbox Support Shackle:10 - 222 A /12  , as shown on the right lifting eye.

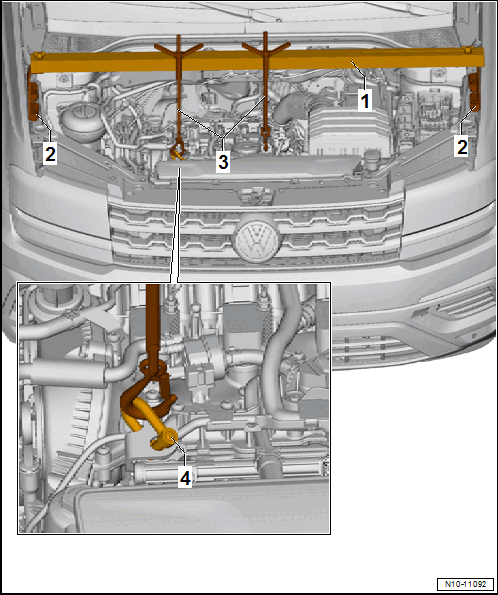

Position the Engine Support Bridge:10-222 A  as shown

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Square pipe from the Engine Support Bridge:10-222 A
2. Engine Support Bridge - Adapter:10 - 222 A /35
3. Spindles from the Engine Support Bridge:10-222 A
4. Engine/Gearbox Support Shackle:10-222 A/12

-- Tension the engine/transmission sub-assembly slightly with the Spindles.
