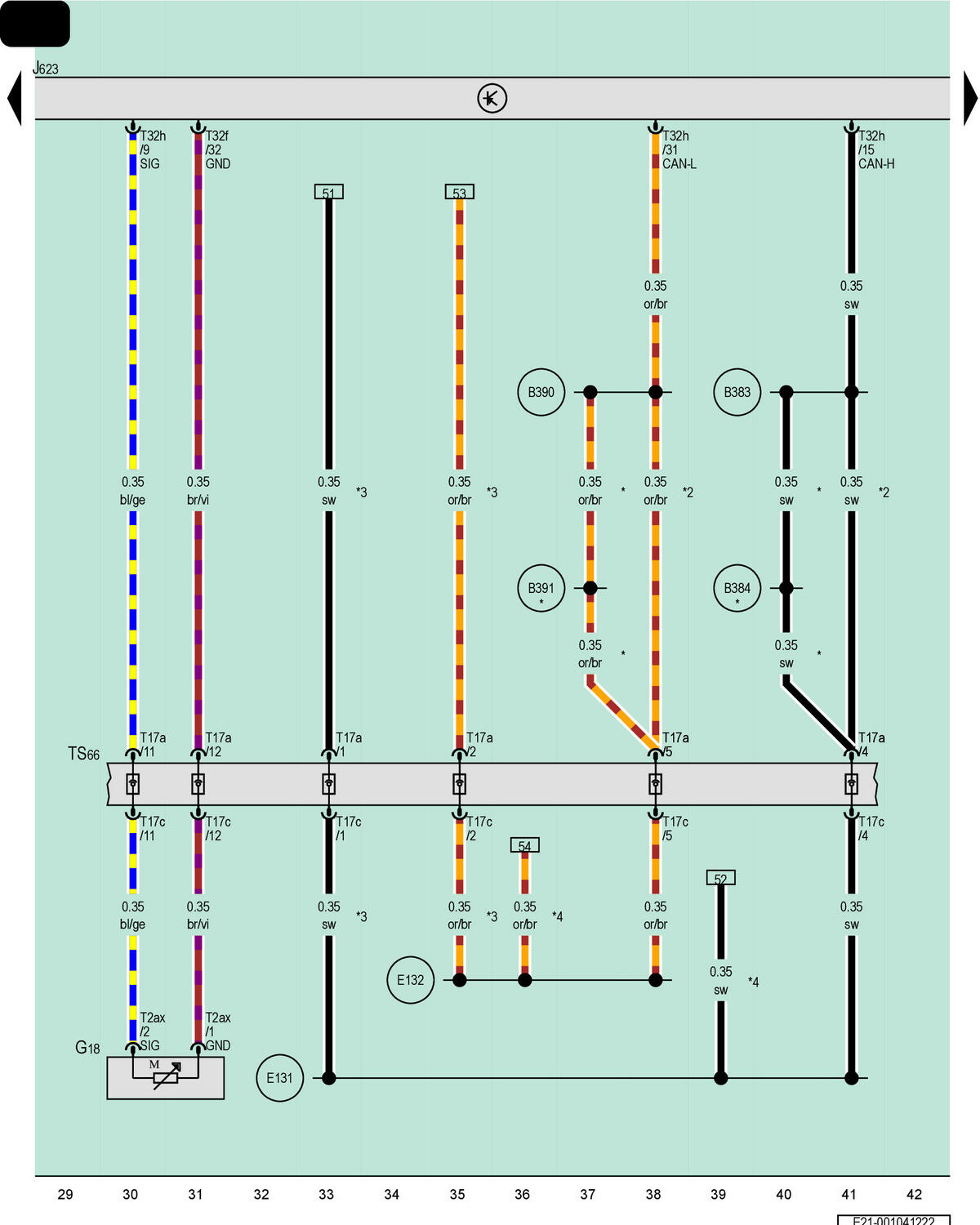

Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G18

Temperature Sensor

J623

T2ax

2-Pin Connector, Black

T17a

17-Pin Connector, Black

T17c

17-Pin Connector, Black

T32f

32-Pin Connector, Gray

T32h

32-Pin Connector, Blue

TS66

Rear Suspension Coupling Point

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

E131

CAN Bus Drive High Connection 5 (in Engine Wiring Harness)

E132

CAN Bus Drive Low Connection 5 (in Engine Wiring Harness)

For USA Only

Not for USA

For Rear Wheel Drive Vehicles

For AWD Vehicles
