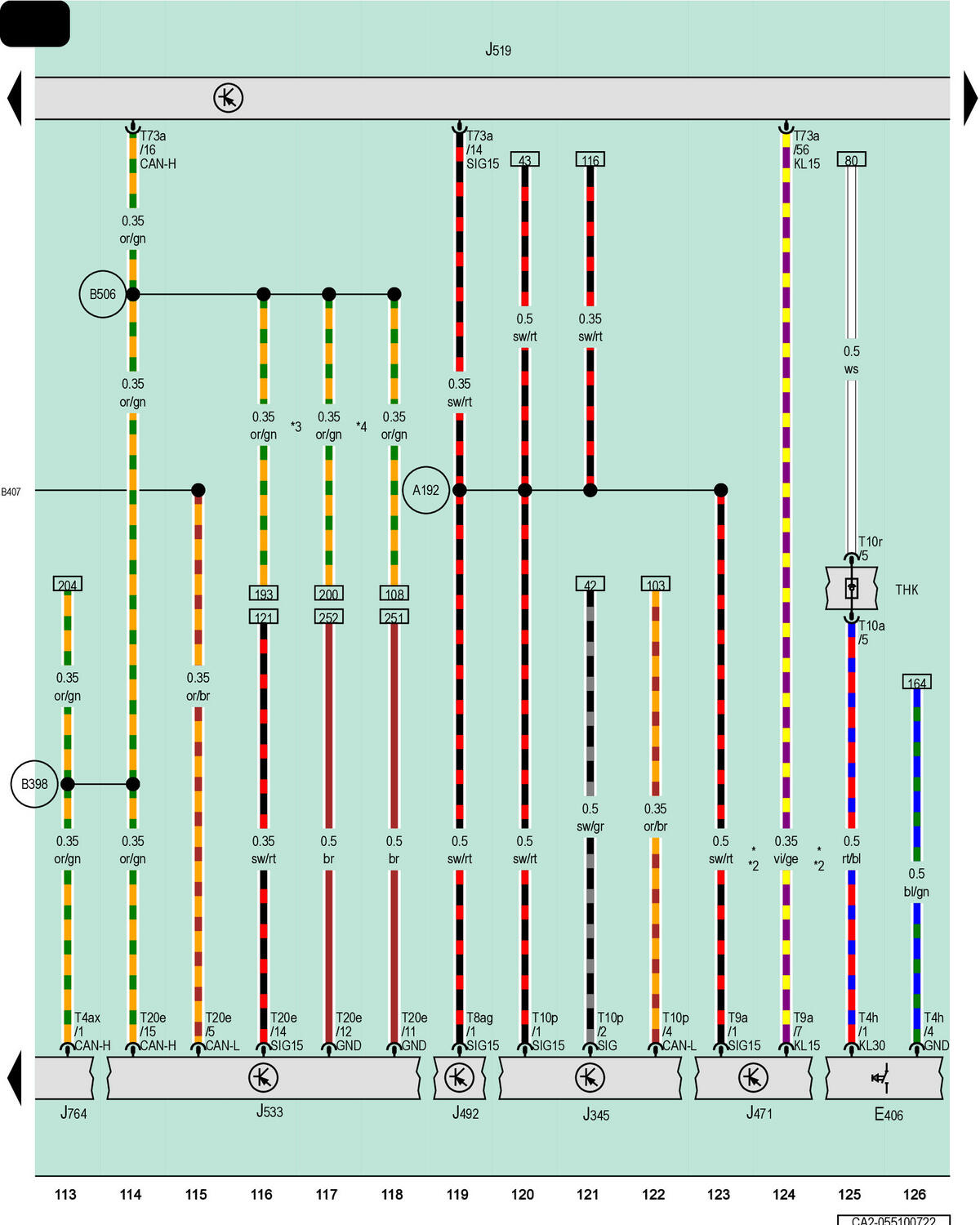

Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Electronic Steering Column Lock Control Module
E406
Rear Lid Lock Button in Luggage Compartment
J345
Towing Recognition Control Module
J471
Remote Start System Relay
J492
All-Wheel Drive Control Module
J519
Vehicle Electrical System Control Module
J533
Data Bus on Board Diagnostic Interface
J764
Electronic Steering Column Lock Control Module
T4ax
4-Pin Connector, Black
T4h
4-Pin Connector, Black
T8ag
8-Pin Connector, Black
T9a
9-Pin Connector, Gray
T10a
10-Pin Connector, Black
T10p
10-Pin Connector, Black
T10r
10-Pin Connector, Black
T20e
20-Pin Connector, Red
T73a
73-Pin Connector, Black
THK
Rear Lid Coupling Point
A192
Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506
Comfort CAN Bus High Connection (in Interior Wiring Harness)
*
For Vehicles with Engine Remote Start
*2
For Vehicles with Engine Remote Start Setup
*3
For Vehicles without Peripheral Camera
*4
For Vehicles with Peripheral Camera
