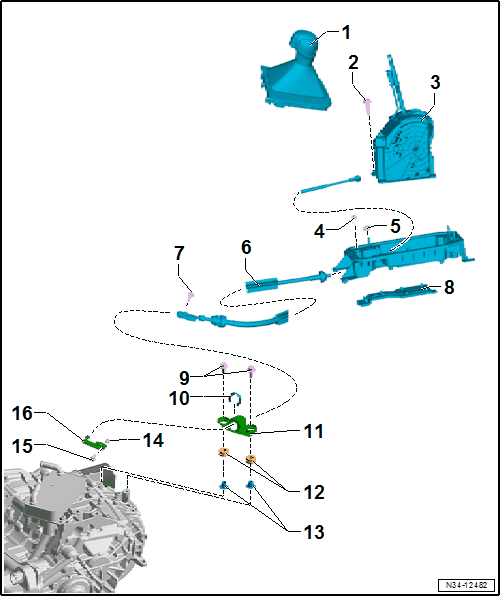

Overview - Shift Mechanism

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Handle with Shift Cover
- Do not remove the handle unnecessarily. Only the cover must be unclipped for the emergency release. Refer to EMERGENCY RELEASE FROM P .
- Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 8 Nm
Shift Mechanism
- With integrated Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-.
- Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
Lock Washer
- Always replace after removing.
Nut
- Quantity: 4
- For selector mechanism to body
- 8 Nm
Selector Lever Cable
- Do not grease the selector lever cable.
- Checking and Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
Bolt
- Selector lever cable adjusting bolt
- 13 Nm
Cover
- Always replace after removing.
Bolt
- Quantity: 2
- 20 Nm
Clip
- Replace after removing
- Installation position: the offset side of the clamp points to the selector lever
Cable Bracket
- For the selector lever cable
Grommet
- Clipped in the cable bracket
- For the cable mounting bracket to transmission
Spacer
- Installation position: the larger diameter points to the transmission
Nut
Bolt
- Replace after removing
- 10 Nm +90°
Shift Lever
