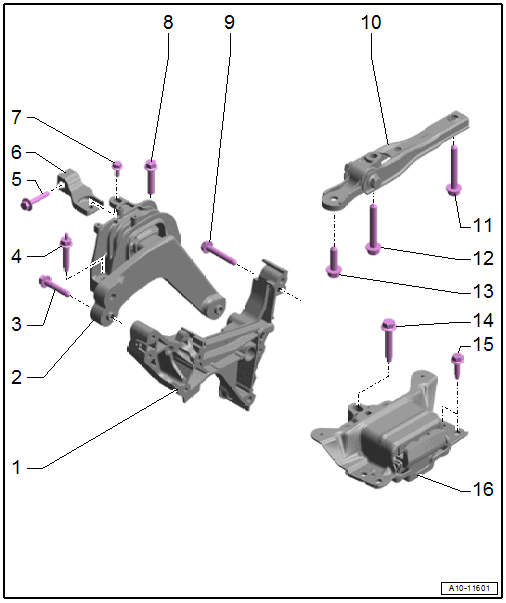

Overview - Assembly Mounts
- 1 -
Engine Support
- Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 2 -
Engine Mount
- Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 3, 4, 5 -
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 6 -
Bracket
- Equipped on some models
- 7, 8, 9 -
Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 10 -
Pendulum Support
- 11 -
Bolt
- For pendulum support to subframe
- Replace after removing
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 12 -
Bolt
- For pendulum support to transmission
- Replace after removing
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 13 -
Bolt
- For pendulum support to transmission
- Replace after removing
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 14 -
Bolt
- For the transmission mount on the transmission
- Quantity: 3
- Replace after removing
- 60 Nm +90°
- 15 -
Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- 16 -
Transmission Mount
