Engine, Supporting In Installation Position

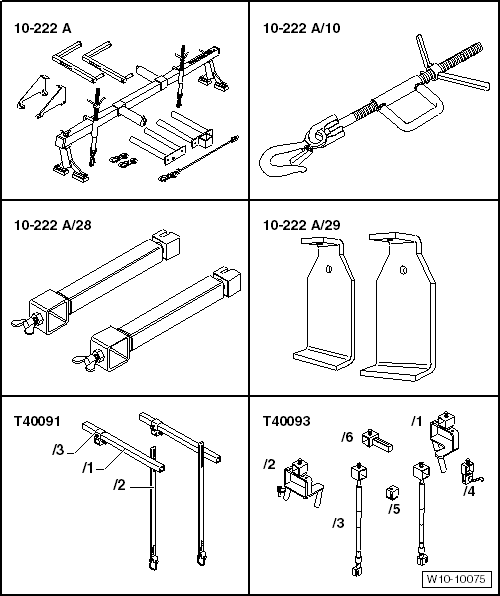

Special tools and workshop equipment required
- Engine Support Bridge: 10 - 222 A
- Engine Support - Bracket w/Spindle and Hook: 10-222A/10
- Engine Support Bridge - Engine Support 28: 10-222A/28
- Engine Support Bridge - Engine Support 28-2: 10-222A/28-2
- Engine Support Bridge - Engine Support 29: 10 - 222 A /29 (quantity: 2)
- Engine Support - Square Pipe: T40091/1 and Engine Support - Joint Fixture: T40091/3 (quantity: 2) from the Engine Support - Basic Set: T40091
- Movable Joint: T40093/3 (quantity: 2) from Engine Support Supplement Set: T40093B
- Engine/Gearbox Support Shackle: 10-222 A/12
Support the engine
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

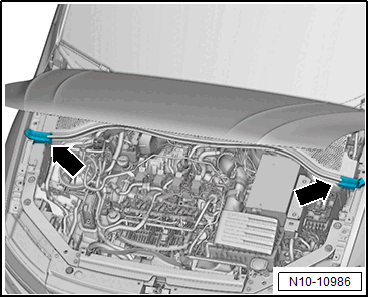

-- Remove the right and left foam parts -arrows- for the plenum chamber seal.
-- Place the Engine Support Bridge - Engine Support 29: 10 - 222 A /29 on both sides of the vehicle between the fender and the fender bolting plate underneath.

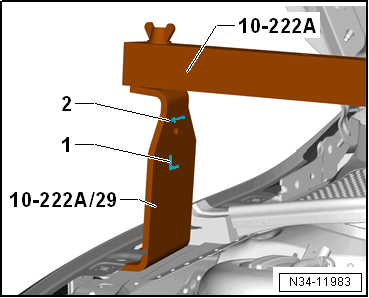

Installation position:
- The Engine Support Bridge: 10-222 A is installed behind the gas-filled strut for the hood.
- The Adapter "L" = -1- is installed on the "right" side of the vehicle.
- The Adapter "R" (not illustrated here) is installed on the "left" side of the vehicle.
- The arrow -2- always points in direction of travel.
-- Slide the two Engine Support - Joint Fixture: T40091/3 onto the Engine Support Bridge: 10-222 A .
-- Tighten the Engine Support Bridge: 10-222 A on the Engine Support Bridge - Engine Support 29: 10 - 222 A /29 .
-- Remove the bolts -arrows- for the lock carrier retaining bracket on the left and right sides

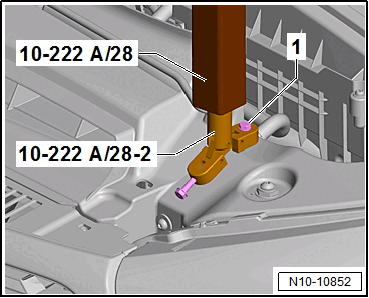

-- Remove the lower mounts on the Engine Support Bridge - Engine Support 28: 10 - 222 A /28 and replace with the Engine Support Bridge - Engine Support 28-2: 10-222A/28-2 .
-- Remove the bolts -arrows- for securing the engine support bridge on the lock carrier from the Engine Support Bridge - Engine Support 28-2: 10-222 A /28-2 .
-- Tighten the Engine Support Bridge - Engine Support 28-2: 10-222 A /28-2 on the lock carrier using the bolt -1-. Tightening specification: 8 Nm.

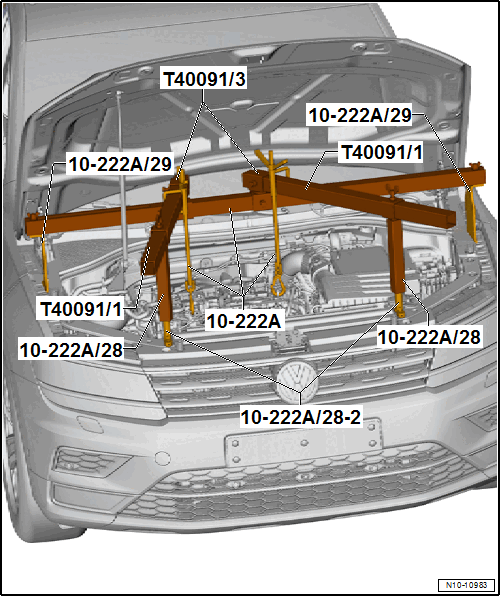

-- Install the Square Pipes: T40091/1 each with a corresponding spindle as shown.
-- Engage the Spindles in the lifting eyes of the engine. If necessary, use the Engine/Gearbox Support Shackle: 10 - 222 A /12 .
-- Tension the engine/transmission sub-assembly slightly with the Spindles.
