Vehicle Data Label: Notes

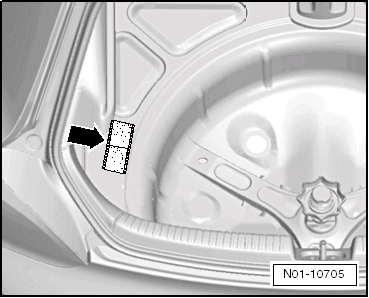

The vehicle data label - arrow- is located in the spare wheel well on the left side. The vehicle data label is also in the customer maintenance schedule.

Fig 1: Identifying Vehicle Data Label
GWWN01-10705Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The label contains the following vehicle data:

Fig 2: Identifying Details Of Vehicle Data Label
GWWN01-10707Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  VIN

2 -  Vehicle Model, Engine Output, Transmission

3 -  Engine and Transmission Codes, Paint Number, Interior Equipment

4 -  Optional Equipment, PR Numbers

The sticker inside the customer maintenance schedule contains the same information. The legend is under the sticker.

Fig 3: Identifying Customer Maintenance Booklet Label
GWWN01-10652Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
