Engine Cover, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal while noting the following:

NOTE:

Before installing coat the ball pin with water without additive.

Check the correct seating of the rubber buffer in the engine cover and correct if necessary.

Adhere to the sequence during assembly.

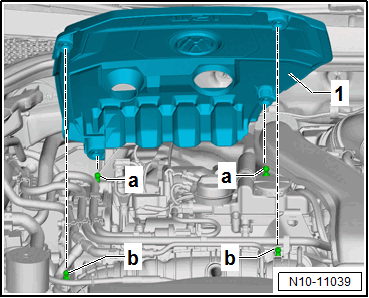

-- Push the engine cover -1- on the ball pin -b-.

GWWN10-11039Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then push the engine cover -1- on the ball pins -a-.
