Factory Paint Structure, Clear Lacquer

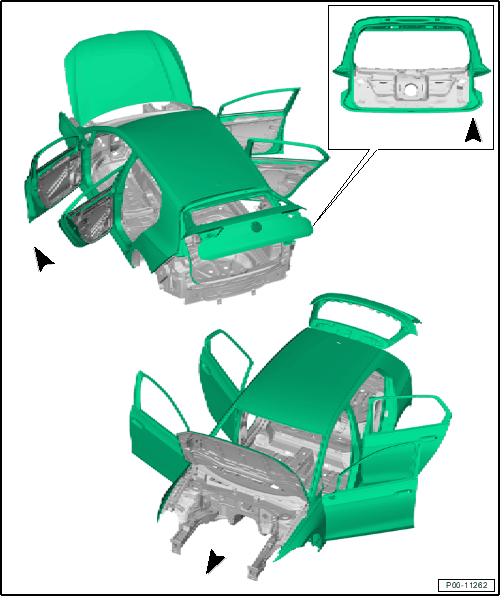

Body Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. -

   Clear Coat

   • Only the colored body areas will be painted with clear lacquer.
   • The layer thickness, depending on the color, must be chosen so it meets the entire coat thickness greater than 90 μm (including the zinc layer) after the clear coat application.
