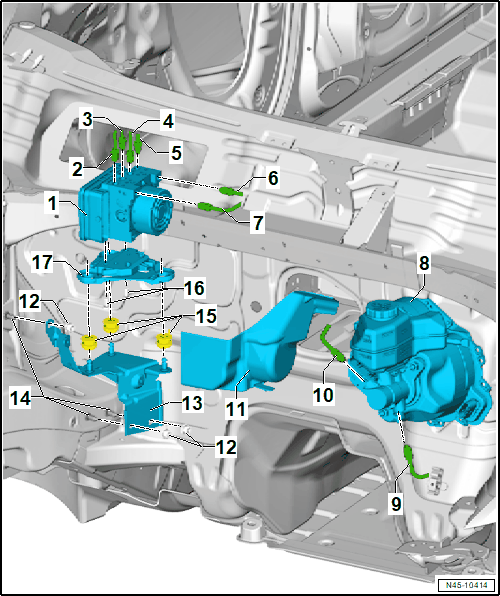

Overview - Control Module And Hydraulic Unit, LHD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. ABS Control Module -J104- and ABS Hydraulic Unit -N55-
   • Removing and Installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
2. Brake Line
   • To the right rear brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
3. Brake Line
   • To the left front brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
4. Brake Line
   • To the right front brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
5. Brake Line
   • To the left rear brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
6. Brake Line
   • To the brake master cylinder/secondary piston circuit
   • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
7. Brake Line
   • To the brake master cylinder/primary piston circuit
   • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
8. Brake Booster/Brake Master Cylinder
   • Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER .
   • Brake Booster, Checking. Refer to the Vehicle Diagnostic Tester
   • Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
9. Brake Line
   • Brake master cylinder/primary piston circuit to hydraulic unit
   • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
   • With standard tool: 14 Nm
   • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
10. Brake Line
    • Brake master cylinder/secondary piston circuit to hydraulic unit
    • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
    • With standard tool: 14 Nm
    • With special tools VAS 6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
11. Heat Shield
12. Nut
    • 20 Nm
13. Bracket
14. Studs
15. Rubber Bushing
16. Bolt
    • 8 Nm
17. Bracket
