Airbag System: Checking

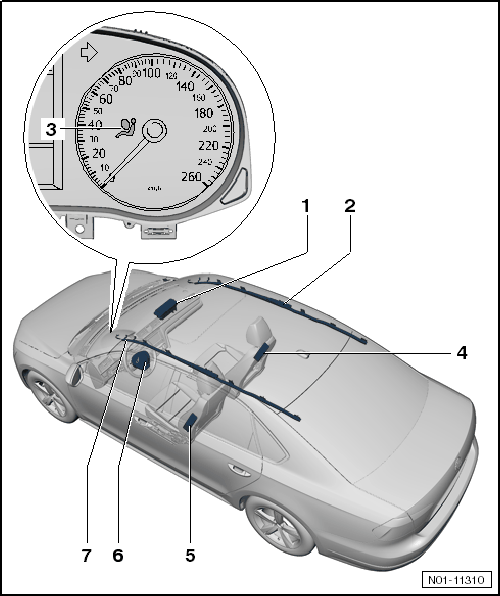

How to recognize: airbag units are identified by "AIRBAG" on them.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform a visual inspection of the Airbag Indicator Lamp - K75- -3-.

-- Check the airbag unit on the driver side -6- for damage on the outside.

-- Check the driver side head curtain airbag -7- for damage on the outside.

-- Check the driver side thorax airbag -5- for damage on the outside.

-- Check the airbag unit on the front passenger side -1- for damage on the outside.

-- Check the front passenger head curtain airbag -2- for damage on the outside.

-- Check the front passenger side thorax airbag -4- for damage on the outside.
