Overview - Assembly Mounts

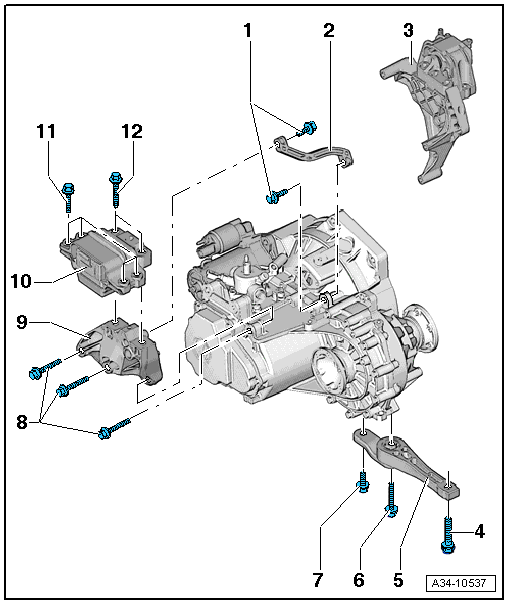

Fig 1: Engine And Transmission Mount And Bracket Overview
GWWA34-10537Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 20 Nm +90°
    • Replace after removing
    • Tightening sequence. Refer to Fig 3.
    • Transmission support to transmission bracket and transmission
  2. Transmission Support
    • To the transmission bracket and transmission
  3. Engine Mount with Engine Support
  4. Bolt
  5. Pendulum Support
  6. Bolt
  7. Bolt
  8. Bolt
    • 40 Nm +90°
    • Replace after removing
    • Tightening sequence. Refer to Fig 4.
    • Transmission bracket to transmission.
  9. Transmission Bracket
  10. Transmission Mount
  11. Bolt
  12. Bolt
    • 60 Nm +90°
    • Replace after removing
    • Tightening sequence. Refer to Fig 2.
    • Transmission mount to transmission bracket

Attaching the Transmission Mount to the Transmission Bracket

Fig 2: Identifying Left Subframe Mount
GWWN34-1846Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts -arrows-.

-- Tighten all bolts hand-tight.

-- Tighten the bolt to the tightening specification.

Transmission Support to Transmission Bracket and Transmission

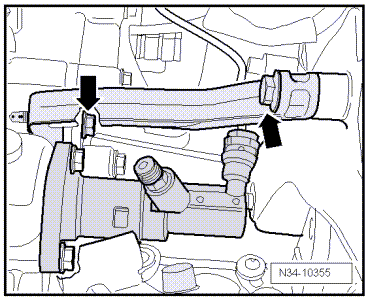

Fig 3: Identifying Transmission Support And Slave Cylinder
GWWN34-10355Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts -arrows-.

-- Tighten both bolts -arrows- hand-tight at first.

-- Tighten the bolt to the tightening specification.

Transmission Bracket A to Transmission.

Fig 4: Identifying Transmission Plate Bolts
GWWN34-1847Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts -arrows-.

-- Tighten all bolts hand-tight.

-- Tighten the bolt to the tightening specification.
