Overview - ATF Circuit

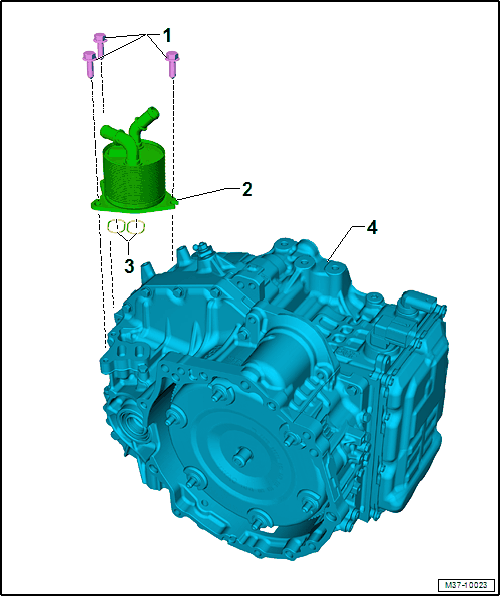

GWWM37-10023Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolts
    • 20 Nm
  2. ATF Cooler
  3. O-Rings
    • Replace after removing
  4. Transmission
