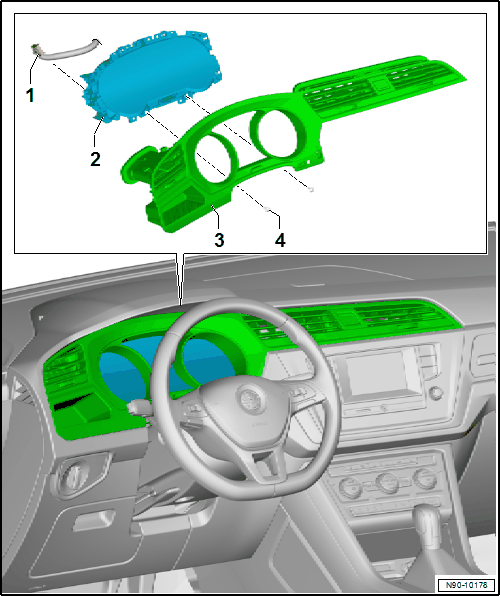

Overview - Instrument Cluster
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
- Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolts
- 1.5 Nm
- Quantity: 2
