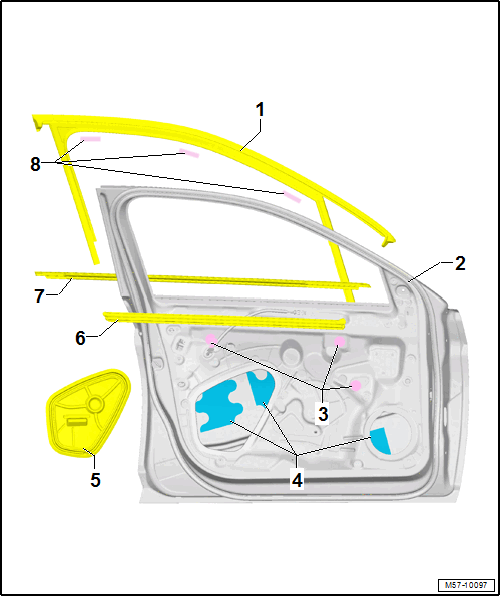

Overview - Door Components

NOTE:

The illustration shows the left side. The right side is done the same.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Window Guide
- Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
Front Door
- Removing and Installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR, ADJUSTING .
Sticker
- 40 mm diameter
- Use commercially available duct tape if needed
Insulation
- Self-adhesive
- Installing:
  -- Cut to size if necessary, 200 mm x 100 mm. Position as shown in the image.

  -- Warm up using the Wiring Harness Repair Set - Hot Air Blower: VAS1978/14A and then press firmly onto the outer door panel.
Door Inner Cover
- Removing and Installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
Inner Window Shaft Strip
- Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Outer Window Shaft Strip
- Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Sticker
- 15 mm x 50 mm
- Use commercially available duct tape if needed
- Quantity: 3
