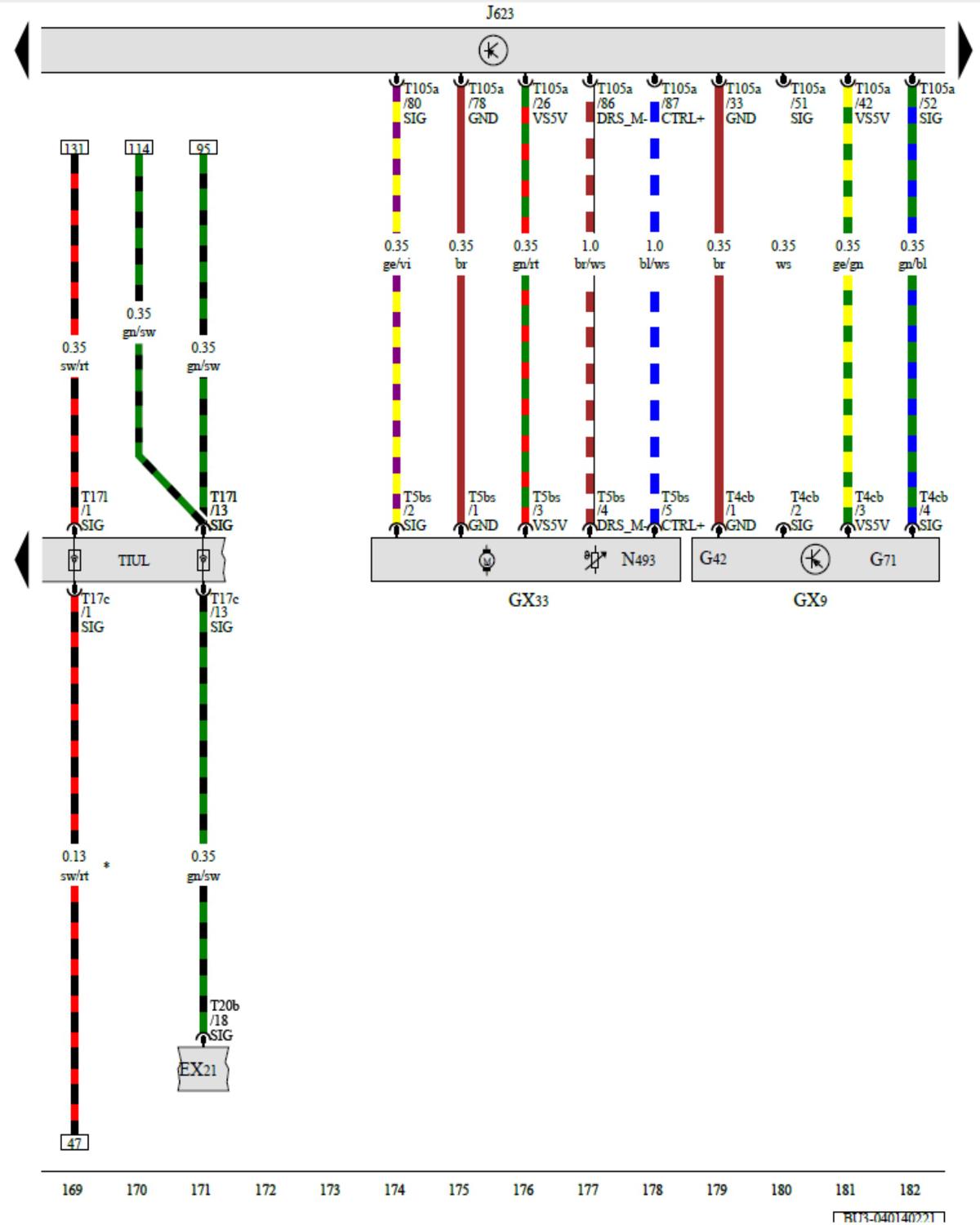

Engine Temperature Control Module, Manifold Absolute Pressure Sensor, Engine/Motor Control Module, Engine Temperature Control Actuator: Notes

GWWBU3-040141217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
