Steering Gear, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

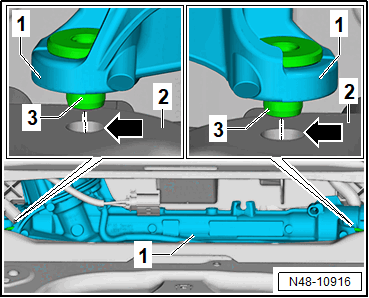

-- Position the steering gear -1- on the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The threaded bushings -3- of the steering gear -1- must be inserted into the holes -arrows- of the subframe -2-.

Continuation

-- Perform the necessary Function/Functions with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
