Transmission Mount, Removing And Installing: Removing

-- Refer to Front Motor, Removing .

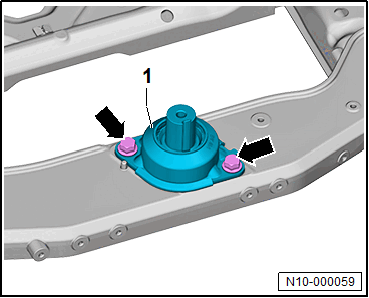

-- Remove the bolts -arrows- and the transmission mount -1-.

GWWN10-000059

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
