Overview - Motor Control Module
Overview - Motor Control Module

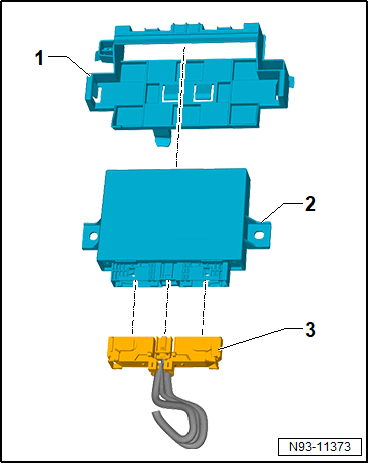

Fig 1: Exploded View Of Motor Control Module
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine/Motor Control Module Bracket
Refer to
Engine/Motor Control Module J623 Bracket, Removing and Installing
.
Engine/Motor Control Module -J623-
Refer to
Engine/Motor Control Module J623, Removing and Installing
.
Connector
