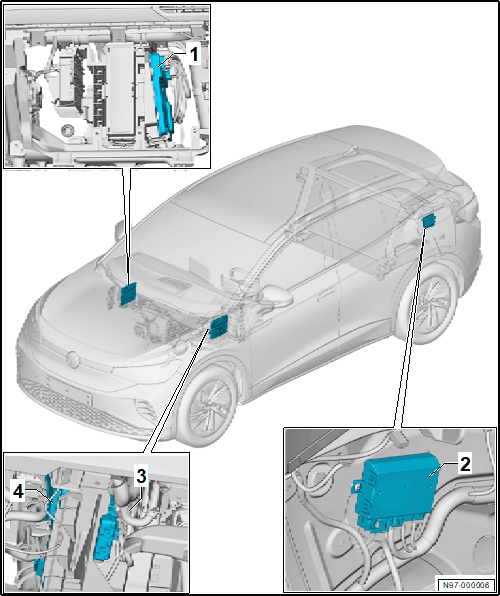

Component Location Overview - Control Modules

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Data Bus on Board Diagnostic Interface -J533-
   • Refer to Data Bus on Board Diagnostic Interface J533, Removing and Installing  .
2. Towing Recognition Control Module -J345-
   • Refer to TOWING RECOGNITION CONTROL MODULE J345, REMOVING AND INSTALLING .
3. Access/Start System Interface -J965-
   • Refer to COMPONENT LOCATION OVERVIEW - ACCESS/START AUTHORIZATION SYSTEM .
4. Vehicle Electrical System Control Module -J519-
   • Refer to Vehicle Electrical System Control Module J519, Removing and Installing  .
