LTE Antenna, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

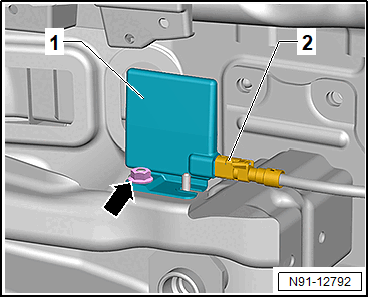

GWWN91-12792Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -arrow- and the LTE antenna -1-.
