Overview - Front Axle Speed Sensor

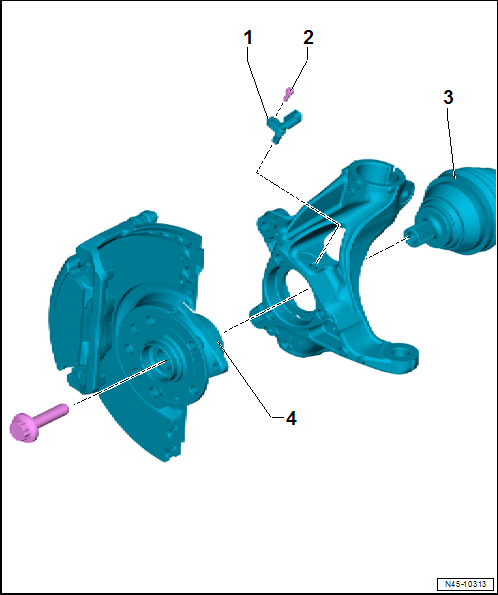

Fig 1: Exploded View Of Front Axle Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wheel Speed Sensor -G47- / -G45-
- Left Front ABS Wheel Speed Sensor -G47- / Right Front ABS Wheel Speed Sensor -G45-
- Removing and installing. Refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
- Clean the inner surface of the opening before inserting the sensor
- Coat the hole with Hot Bolt Paste: G 052 112 A3 .
Bolt
- 8 Nm
Drive Axle
- Overview. Refer to OVERVIEW - DRIVE AXLE .
- Removing and installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
Wheel Hub with Wheel Bearing Unit
- The ABS sensor ring is integrated in the wheel bearing unit
- Removing and installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
